On sale
Soft Serve Machines

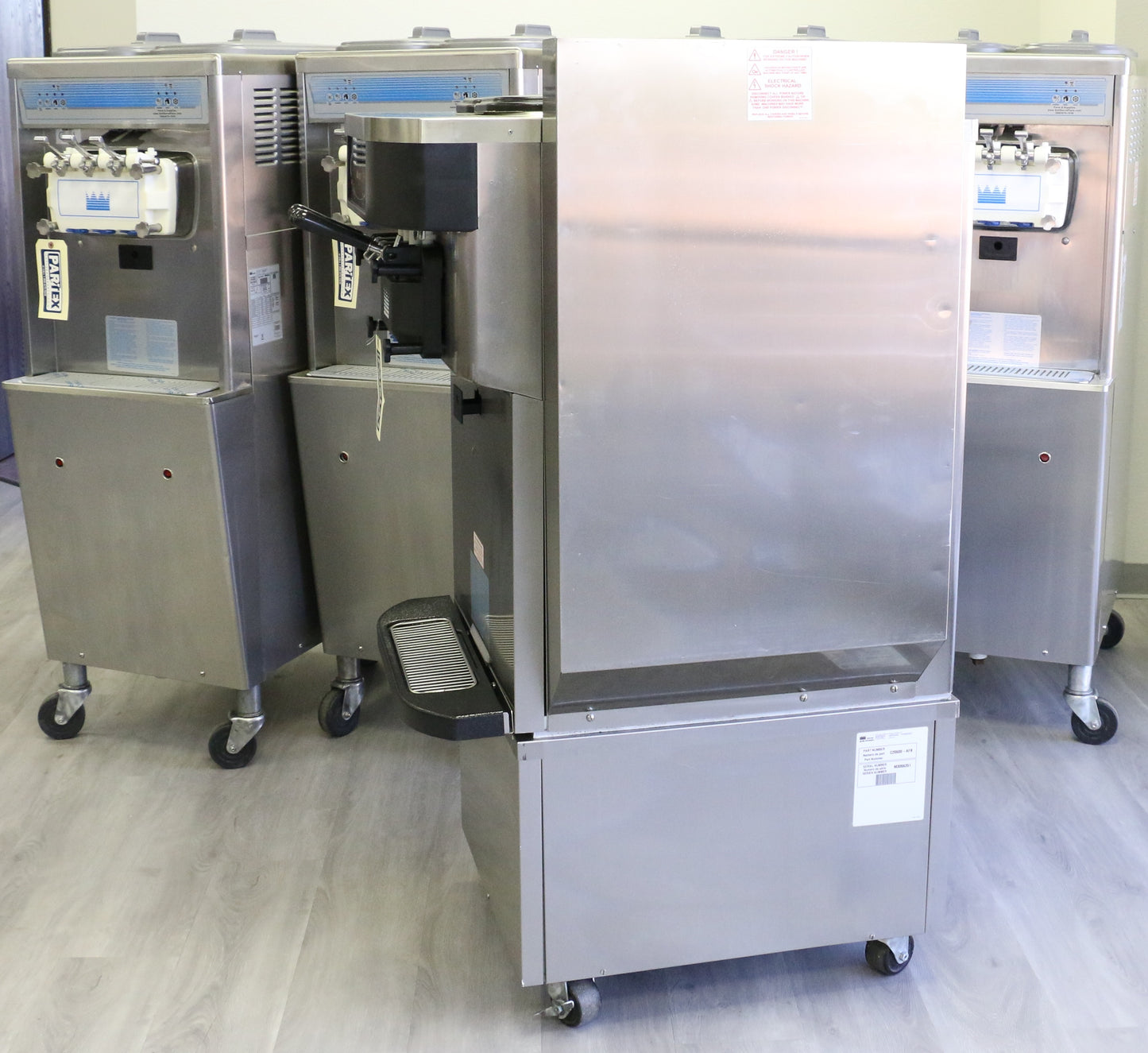

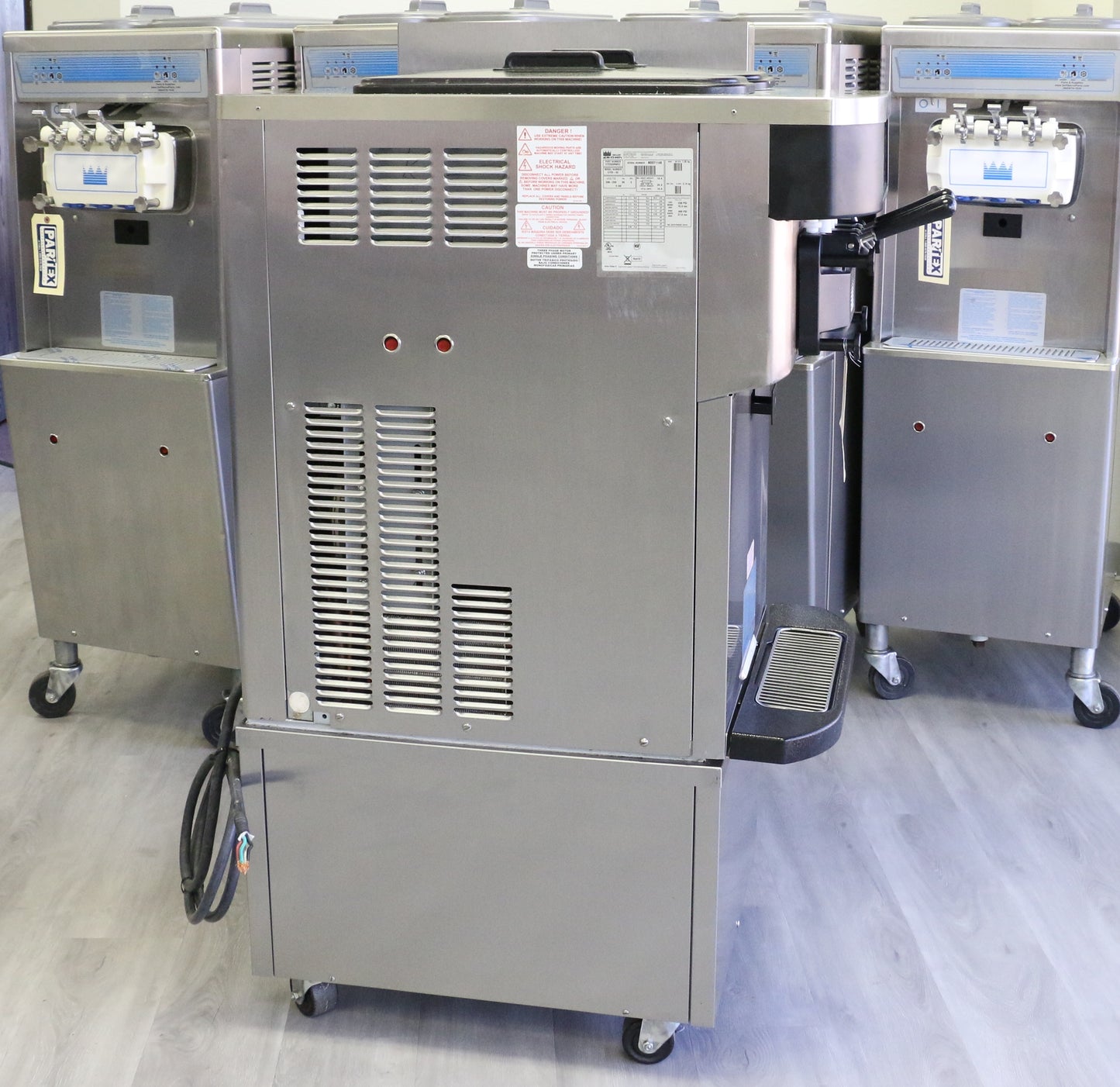

2016 Taylor C723 | Soft Serve Machine | 1 Phase, Air Cooled

In Stock
SKU: c72327acm2
Sale price

Regular price $10,795.00
( / )
Shipping calculated at checkout.

Limited Quantity In Stock

Taylor C723

Medium Capacity Twin Twist Soft Serve Machine

Platinum Level Re-Manufactured - Our Proprietary Platinum Re-Manufactured Machines are the best available anywhere! Platinum Re-Manufacturing Brand New "Made in the USA" Main Tecumseh Compressors & 2 New "Made in the USA" Leeson Beater Motors.

Refurbished: Our refurbishing processes have been developed over the past 30 years. Our machines are the most rigorously tested & reliable machines available anywhere.

1 Year Warranty on Main Compressors and Beater Motors, 90 days all parts.

Features:

Offer all the popular soft serve variations from low or nonfat
ice creams to custards, yogurt and sorbet. Serve two
separate soft serve flavors, or an equal combination of both
in a twist.

Freezing Cylinder
Two, 2.8 quart (2.7 liter).

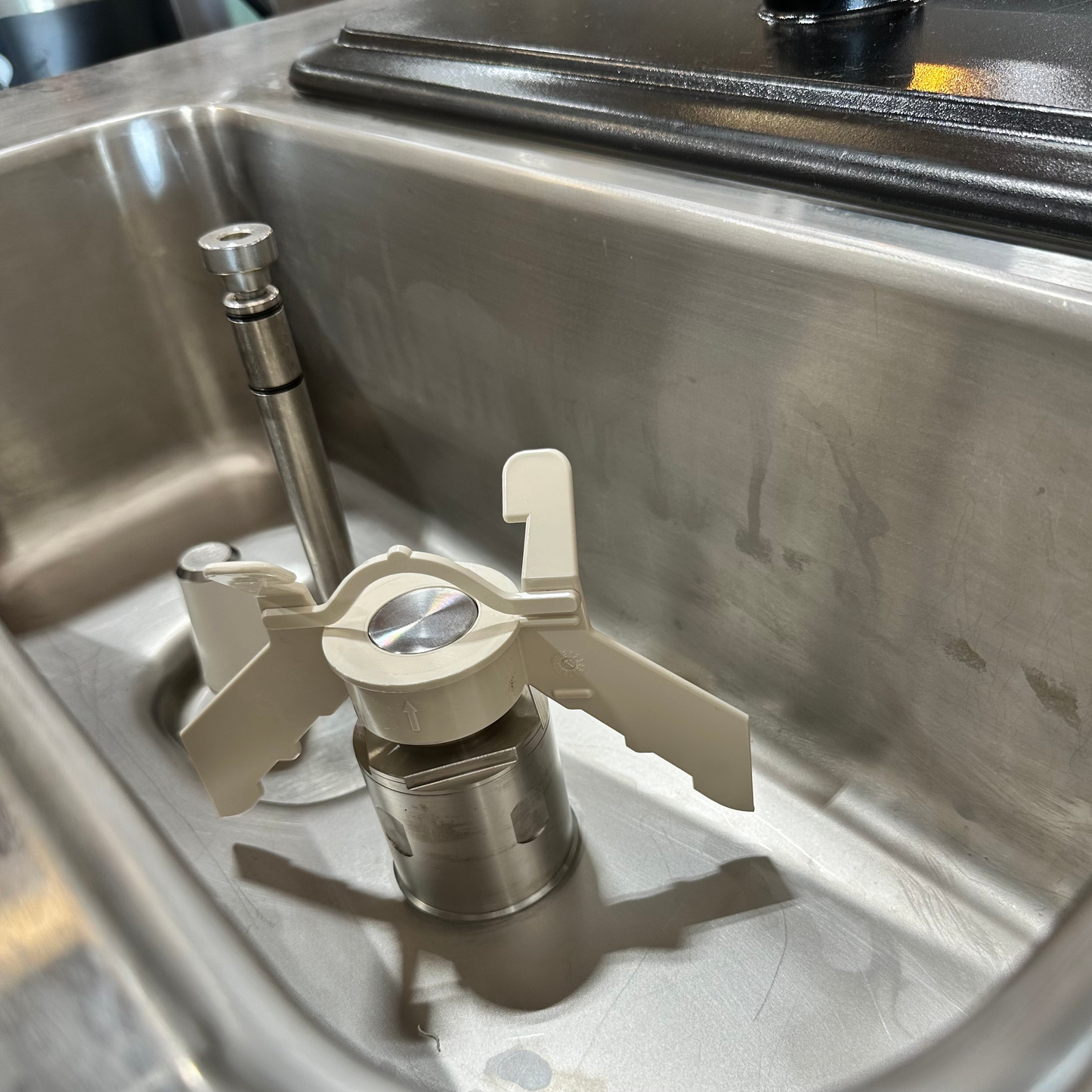

Mix Hopper
Two, 14 quart (13.2 liter). Separate hopper refrigeration (SHR) maintains mix
below 41ºF (5ºC) during Auto and Standby modes.

Indicator Lights
Digital readout displays hours since last brush cleaning to assure product
safety. Mix Low light alerts operator to add mix. Audible alarm may be
enabled to sound when mix is low. When the Mix Out light flashes, the unit
shuts down automatically to prevent damage.

Touch Screen Controls
Microprocessor touch controls are embedded in durable tempered glass
panel. Multiple languages are selectable. Viscosity is continually measured
to dispense consistent quality soft serve desserts. Temperatures in the
hoppers or freezing cylinders may be displayed at any point of operation, in
either Fahrenheit or Celsius. Draw counter allows operator to view number of
servings dispensed.

Standby
During long no-use periods, the standby feature maintains safe product
temperatures in the mix hopper and freezing cylinder.

Door Interlock System
Protects the operator from injury as the beater will not operate without the
dispensing door in place.

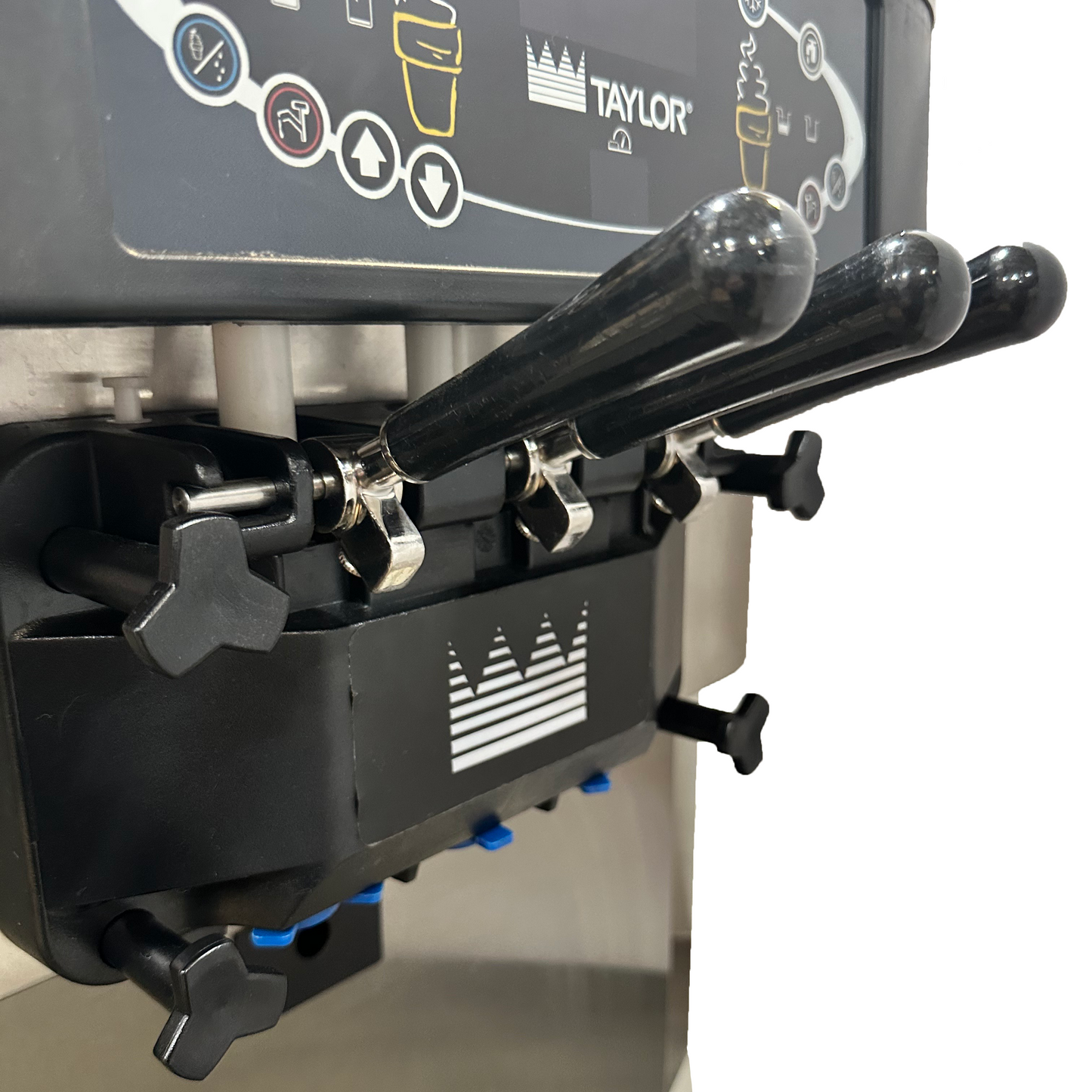

Freezer Door
A specially designed thermo-plastic door allows quick ejection of product
with a simple movement of the draw handle. Self closing draw handles are
standard.

Electrical
One dedicated electrical connections is required.
208-230 Volt/60hz/3 Phase
Max. Fuse Size 25 amps - Minimum circuit Ampacity 18 amps

Beater Motor
Two, 1.0 HP.

Refrigeration System
One, 9,500 BTU/hr. R404A.

Separate Hopper Refrigeration (SHR), One, 400 BTU/hr. R134a.

Minimum 3” (76 mm) around all sides. Minimum air clearances must be met to assure adequate air flow for optimum performance. Optional air discharge chute directs heated air exhaust upwards. No clearance required on right side if air discharge chute is used.

Water Cooled
Water inlet and drain connections out rear panel 3/8” FPT.
