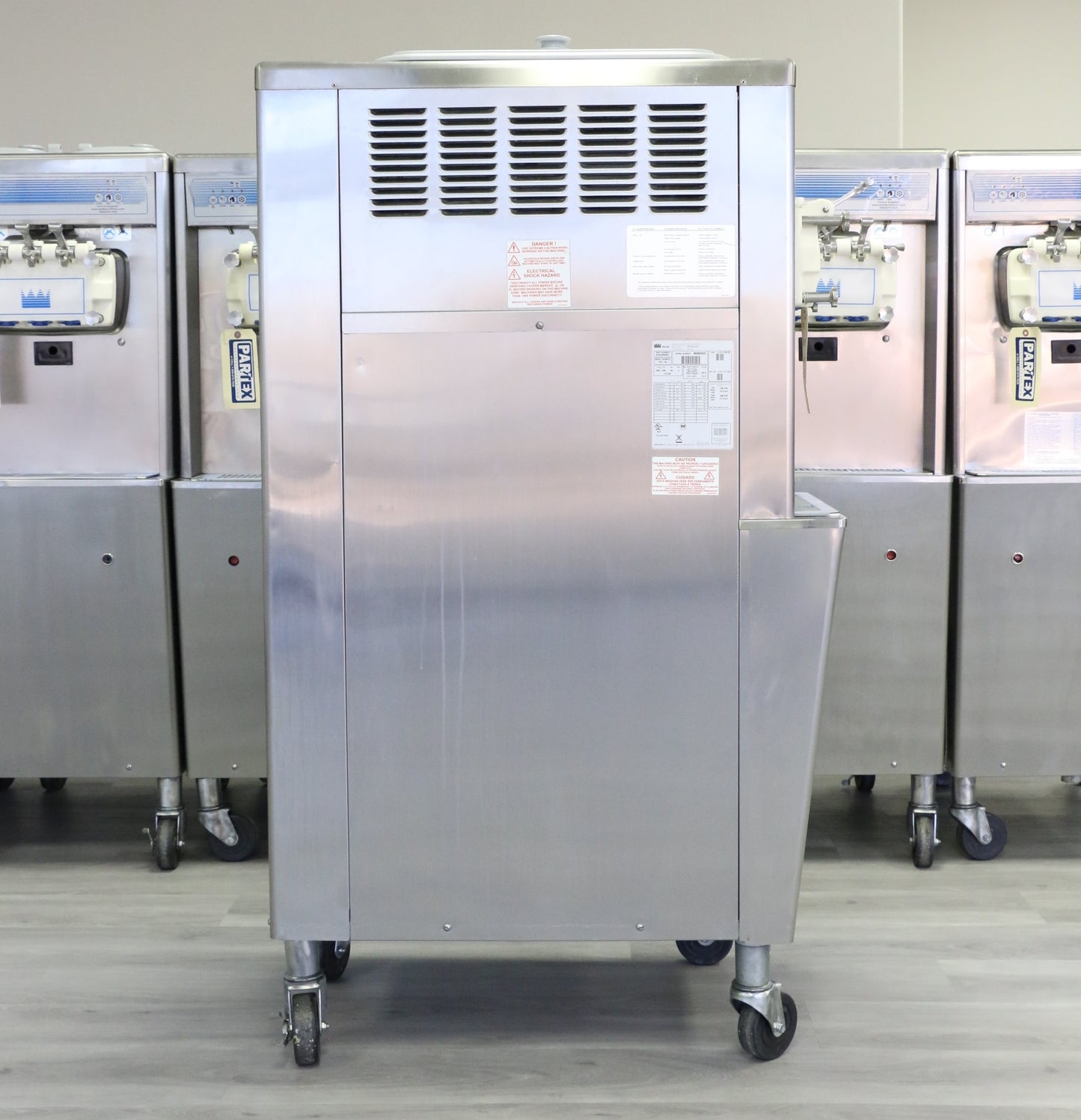

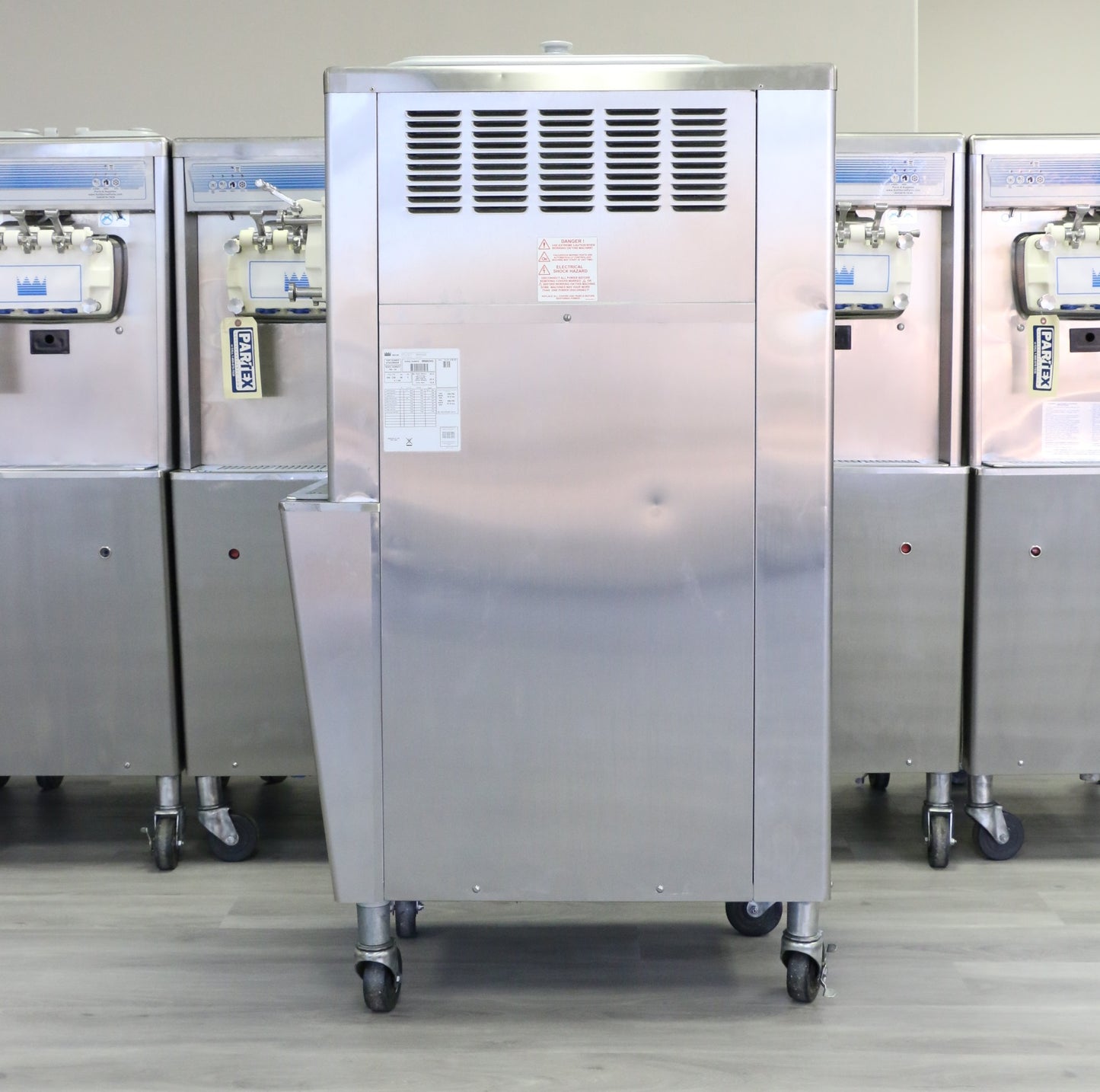

This 2009 Taylor 794-33 soft serve machine is a proven, high-capacity workhorse designed for demanding commercial environments. Built by Taylor, this configuration features 3-phase power and a water-cooled refrigeration system, delivering stable performance and efficient heat management in warm kitchens or confined back-of-house installations.
The Taylor 794-33 is a twin-twist, gravity-fed freezer, allowing operators to serve two individual flavors or a classic twist from a single footprint. Precise temperature control and a durable, low-maintenance design help ensure consistent texture, smooth draw, and reliable output during peak service. The water-cooled setup minimizes ambient heat and noise, making it an excellent choice for indoor locations where air-cooled units may struggle.
Every reconditioned Taylor machine from Soft Serve Parts undergoes a comprehensive inspection and performance test prior to shipment. Our technicians thoroughly clean and sanitize each unit, replace worn components as needed, verify refrigeration operation, and run the machine under load to confirm consistent, dependable performance.
Your reconditioned 2009 Taylor 794-33 water-cooled soft serve machine ships ready to install and operate—simply connect the electrical and water lines, add mix, and begin serving soft-serve ice cream or frozen yogurt within minutes. Known for longevity and straightforward operation, the Taylor 794-33 remains a trusted choice for frozen yogurt shops, cafés, and restaurants that demand reliable output and long-term value.
Key Features
- Twin twist — serve two flavors or a swirl combo
- 3.4 qt freezing cylinders for commercial output & fast recovery
- 14 qt hoppers with SHR keep mix below 41ºF (5ºC)
- Standby mode maintains safe temps during downtime
- Integrated drain assembly simplifies rinse & cleaning
- Mix Low alert notifies staff to add mix
- Softech™ controls monitor viscosity for consistent product
- Optional syrup rail, cone dispenser & draw valve lock kit
- Air or water cooled configurations available
- Built for high-volume shops — strong resale & parts support
Technical Specifications
- Freezing cylinders: (2) × 3.4 qt (3.2 L)
- Mix hoppers: (2) × 14 qt (13.2 L) with SHR
- Beater motors: (2) × 1.5 HP
- SHR maintains mix below 41ºF (5ºC)
- Softech™ viscosity monitoring controls
- Integrated drain assembly for cleaning
- Electrical: 208–230V / 1 or 3 Phase (varies by model)
- Cooling: Air or water cooled — 3" side clearance required (air)
- Refrigeration: (2) × 9,500 BTU/hr (R404A)
- SHR refrigeration: 400 BTU/hr (R134a)
- Dimensions: 20-7/16" W × 30-3/16" D × 60" H
- Weight: 610 lbs (net)
What's Included
Everything you need to start serving product — included.
Every reconditioned machine from Soft Serve Parts ships with a full startup package—just plug it in, add mix, and start serving. No scrambling to find brushes or order seals after the machine arrives. We send the exact supplies our techs use in the field, so your machine is ready to run correctly from day one. You get the machine and the parts you actually need to operate it—not just the stainless steel shell.
Just add mix and power — no extra parts to buy.
- Brush kit — full set for teardown & cleaning
- Stera-Sheen® sanitizer — food-safe & NSF listed
- Lubricant tube — FDA-approved, equipment-safe
- Spare set of scraper blades
- Tune-up kit — fresh seals & o-rings for your model
