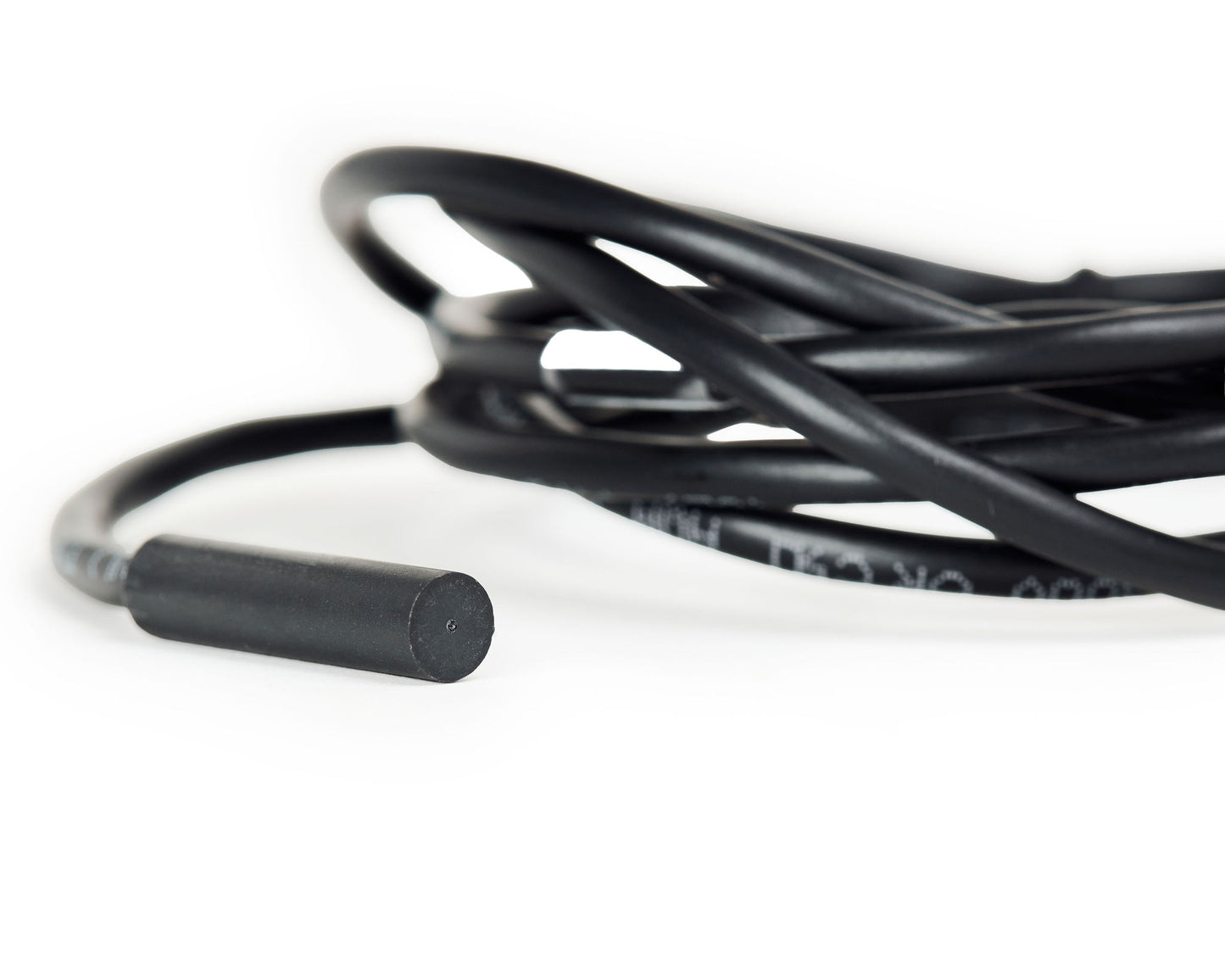

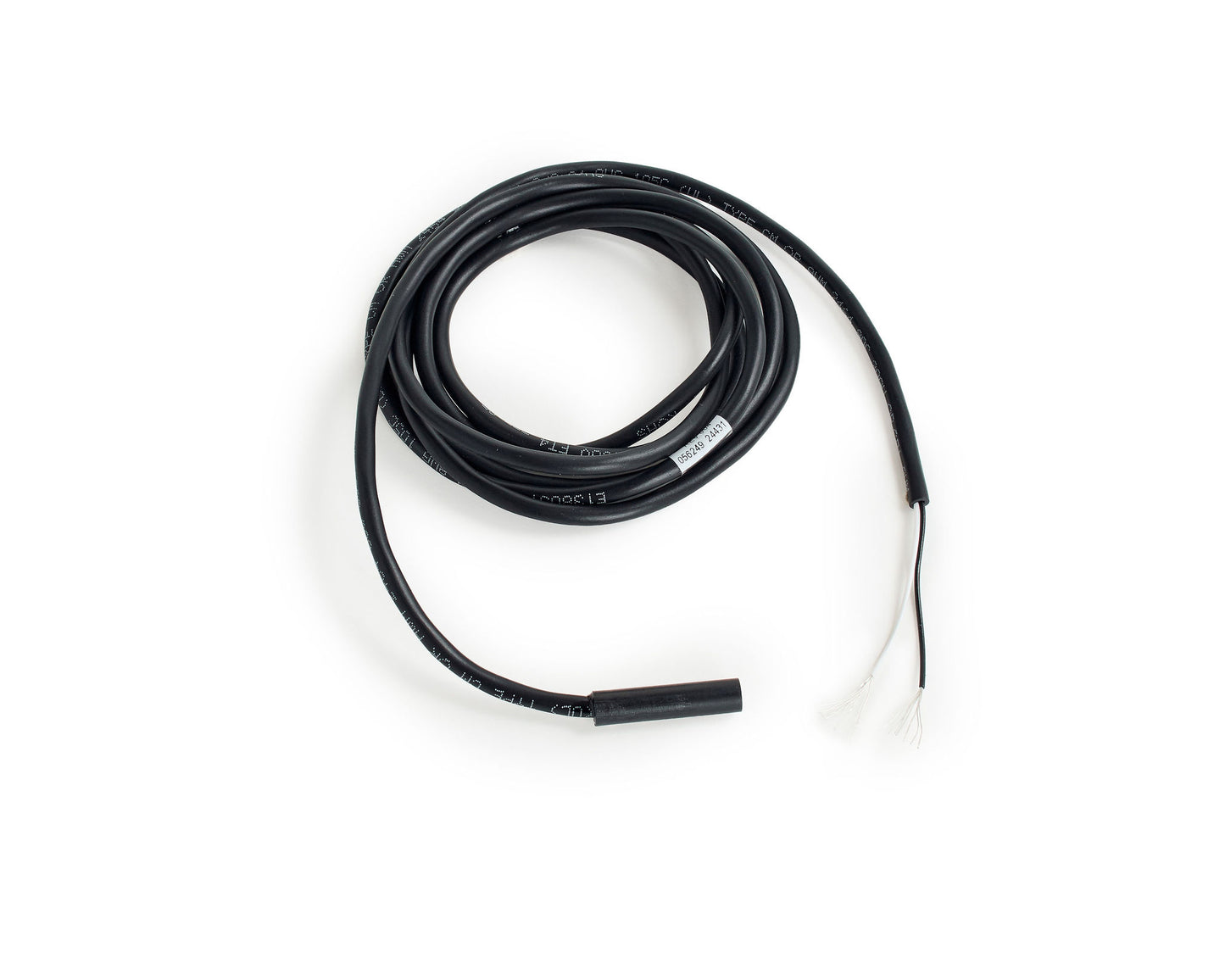

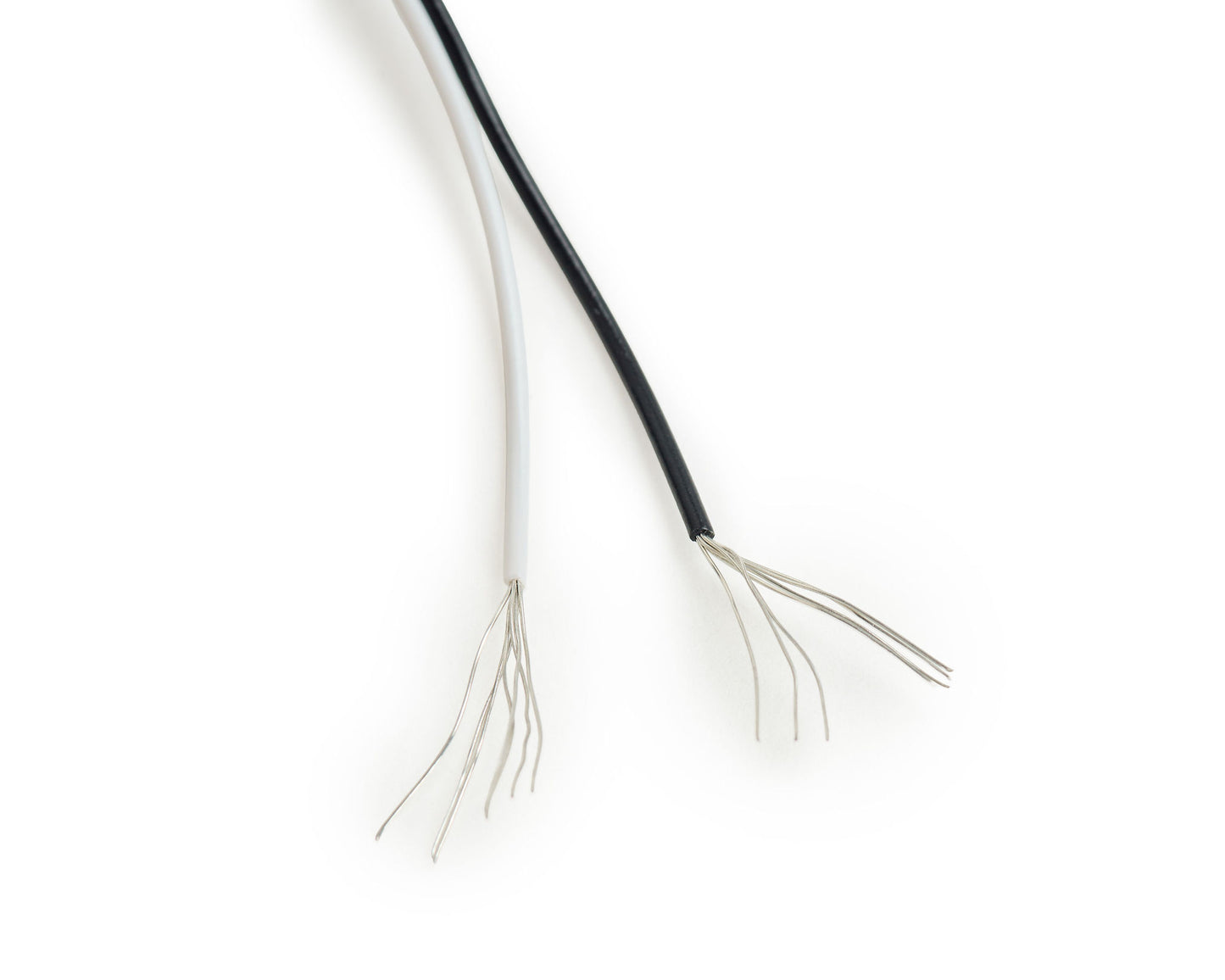

Reed Switch for Taylor Freezer Door Safety Interlock – Part #056249
Keep your Taylor soft serve freezer running safely with this compatible replacement reed switch for the door safety interlock system. Part #056249 is a critical safety component that signals the machine's control board when the freezer door is properly closed — preventing motors and compressors from running if the door is open or misaligned.
Symptoms This Part Fixes
- Softech models (336, 791, 793, 794, C791, C794): The machine enters auto position on each side, but the motors and compressors do not start on either side.
- Taylor Crown models (C706, C707, C708, C709, C712, C713, C716, C717): Display shows "Product Door Off" error.
Specifications
- Part Number: 056249
- Cable Length: 60 inches
- Dimensions: 5.1"L × 1.87"W × 4.3"H
- Weight: 0.06 lbs
Compatible Taylor Models
336, 340, 432, 439, 791, 793, 794, C706, C707, C708, C709, C712, C713, C716, C717, C791, C794
Why Replace This Part?
The reed switch is a magnetic sensor that wears over time or can fail due to repeated door cycling. A faulty switch is one of the most common — and most overlooked — causes of a Taylor freezer that won't enter production mode. Replacing it is a straightforward fix that restores full machine operation without a service call.
* Reed Switch is a magnetic sensor that wears over time or can fail due to repeated door cycling.
