Taylor Softech Ice Cream Machine Settings & Adjustments

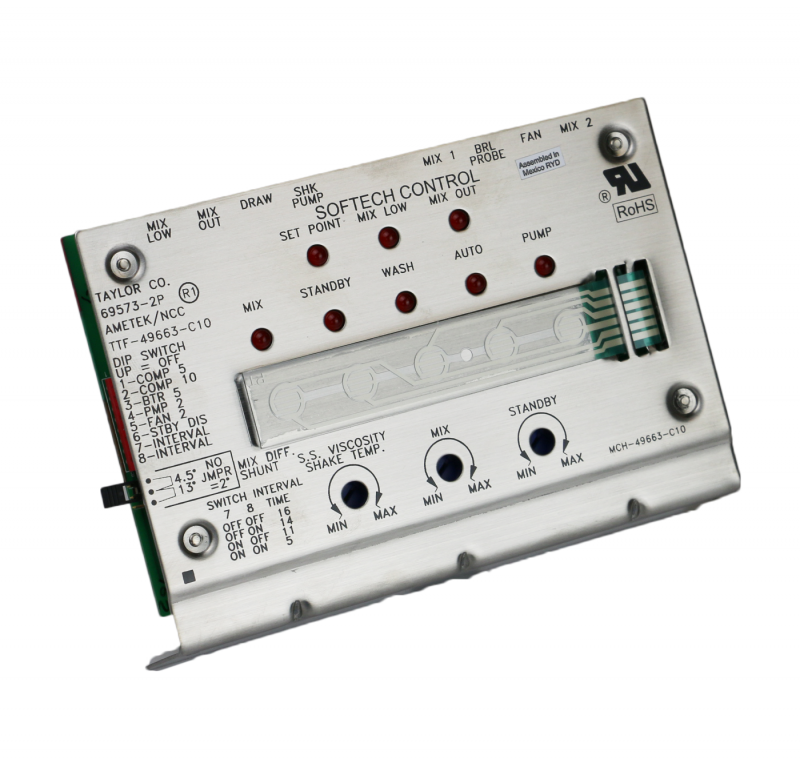

Softech Control Boards

tab1 tab2

Exploded Parts View for Taylor soft serve machines

Item   Description  Part#
 1  Draw Handle Assembly  X55096
 1a  Draw Handle  028804
 1b  Adjustment Screw  055092
 1c  O-Ring 1/4 OD x .070 W                                                015872
 1d  Jam Nut  029639-BLK
 2  Long Nut Stud  034382
 3  Short Nut Stud  034383
 4  Draw Valve  X18303
 5  O-Ring 7/8 OD x .070 W  014402
 6  Beater Drive Shaft  032564
 7  Drive Shaft Boot Seal  032560
 8  Star Design Cap  014218
 9  Door Decal  021521
 10  3 Spout Freezer Door  X51532-12
 11  Pivot Pin  X20683
12 O-Ring 5/16 OD x .070 W 016272
13 Door Gasket HT 4" 048926
14 Front Door Bearing 050216
15 Beater Assembly Helicor X31761
16 Scraper Blade 035174

View of Parts and Panels with Part numbers for Taylor soft serve machine model 791 and 794.

Item Description Part#
1 Hopper Cover 14 Qt. Grey  041682-GRY
2 Drip Pan 19 1/2" Long   035034
3 Feed Tube Stainless - Steel X29429-2
3 Feed Tube - Plastic 036326-2
4 Rear Panel  041855
5 Upper Side Panel (left and right) 024426
6 Lower Right Side Panel   X46448
7 Service Panel  041856
8 Splash Shield  022765
9 Drip Tray  020157
10 Caster  018794
11 Lower Left Side Panel  X46447
12 Louver-Side (Left and Right)  017471
13 Nose Cone Stud   022822
14 O Ring 3/8 OD X .070 W   016137
15 O Ring .643 OD x .077 W  018572
16 Orifice A 100 022465-100
17 Lower Front Panel X41820
18 Caster Adapter X18915
