Taylor 031324 Rear Shell Bearing — Exact Fit Replacement
Part Number: 031324 | Type: Rear Shell Bearing | Country of Origin: USA
What Is a Shell Bearing?
The shell bearing is the part that the beater’s drive shaft passes through. Its main function is to seal ice cream from leaking out of the freezing barrel’s rear into the machine’s interior. It also prevents grease or contaminants from entering the product. A failed shell bearing compromises both machine performance and food safety.
How Do I Know If My Shell Bearing Needs Replacing?

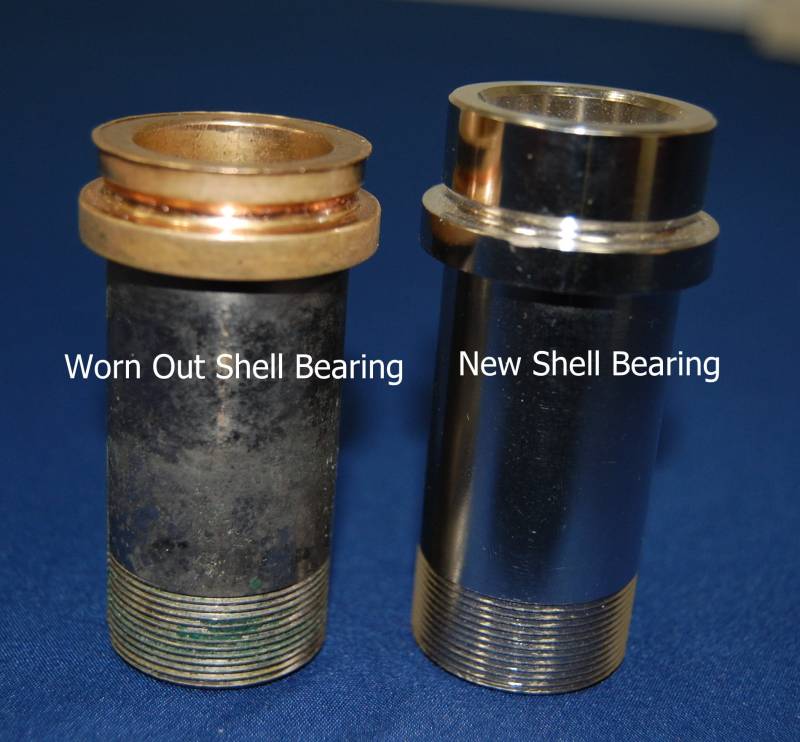

The first sign is excessive leakage into the black slide-out drip trays, even with new drive shaft seals installed and properly lubricated. If your drip trays accumulate more than a tablespoon of grease or ice cream per week, your shell bearing or drive shaft seal likely needs replacement. Any degree of “mushrooming” or visible deformation on the bearing is a clear sign it should be replaced immediately.
Important: Silicone Sealant Required
Proper installation requires clear silicone sealant. Order silicone sealant here, or save time with the X31324-Bundle Shell Bearing ProPack which includes all required installation components.
Recommended Installation Parts
- 028991 Nickel Plated Brass Shell Bearing Nut
- 012864 Lock Washer for Taylor Shell Bearing
- 028992 Drip Guide
- Silicone Sealant 15ml
Specifications
- Part Number: 031324
- Type: Rear Shell Bearing
- Dimensions: 1.2" W × 1.2" H × 4.0" L
- Weight: 0.5 lbs
- Country of Origin: USA
Compatible Taylor Models
60, 62, 104, 220, 336, 338, 339, 358, 359, 441, 444, 632, 701T, 702, 715, 731, 733, 741, 750, 751, 754, 770, 772, 774, 777, 791, 793 (Chick-fil-A), 794, 5454, 5456, 8634, 8657, 8751, 8752, 8754, 8756, 8756 (Single Stage Pump), 8757, C001, C002, C043, C602, C606, C706, C707, C708, C709, C712, C713, C716, C717, C722, C723, H60, H63, H71, H84, PH61, PH71, PH84, PH85, PH90
